Description

codealong walkthrough, building a simple file server in NodeJS




 Slides

Serving Files

Let's build a file server in NodeJS!

It'll be fun!

Follow along by cloning https://github.com/BurlingtonCodeAcademy/simple-server

Single File Server

let fs = require('fs');
let http = require('http');
const port = process.env.PORT || 5000;

http.createServer(function (request, response) {
  let contentType;
  let file;
  let data;

  file = 'index.html';
  try {
    console.log('Serving ' + file);
    data = fs.readFileSync(file);
    contentType = 'text/html'
  } catch (error) {
    console.log(error);
    data = "Error: " + error.toString();
    contentType = 'text/plain';
    response.statusCode = 404;
  }

  response.setHeader('Content-Type',
    contentType + '; charset=utf-8');
  response.write(data);
  response.end();
}).listen(port);
console.log("Listening on port " + port);
  • TODO: move to a gist

LAB: Single File Server

  1. Type in the above server, and launch it with node index.js
  2. In a separate terminal window, run telnet localhost 5000
  3. Type in GET / and hit the Enter key twice
  4. Look at the output. Is it what you expect? Why or why not?

Single File Server: important points

  • the server only serves a single file, index.html, no matter what the client requests
  • it uses the Content-Type header to tell the client that the file is in HTML format
  • if there is an error loading the file, it sends the correct status code
    • (404 means "File not found" although other errors are possibly more correct)

Single File Server: Code Walkthrough

Single File Server: Code Walkthrough 1

let fs = require('fs');
let http = require('http');

loads required libraries "fs" (for filesystem access) and "http" (for fetching or serving files through HTTP).

  file = 'index.html';

"the only file we will ever serve is named index.html"

Single File Server: Code Walkthrough 2

const port = process.env.PORT || 5000;
http.createServer(function (request, response) {
    //...
}).listen(port);
  • creates a server that immediately starts listening on port 5000
  • after each client request, it calls the anonymous function
  • inside the function...
    • the request object contains info about the request
    • the function can modify the response object to generate the response

Single File Server: Code Walkthrough 3

    data = fs.readFileSync(file);

fs.readFile is a NodeJS function in the fs library; it accepts a file path and returns an object containing that file's contents

readFileSync returns the object immediately (aka synchronously => sync suffix)

but the standard readFile function returns it eventually by calling a callback function

(we'll keep using the sync versions because it makes the code easier to follow, but we could rewrite it to be asynchronous without too much effort)

Single File Server: Code Walkthrough 4

  try {
    data = fs.readFileSync(file);
    contentType = 'text/html'
  } catch (error) {
    console.log(error);
    data = "Error: " + error.toString();
    response.statusCode = 404;
  }

try..catch means "if anything goes wrong in the try block, then call the catch block with an object representing the error that just occurred"

In this case the only thing that can go wrong is while reading the file, so we set a 404 Not Found status code on the HTTP response

and put the error message in the response body page

so the client has some clue as to what went wrong

Simple File Server

Next let's allow the client to request more than one file.

In a URL, the path part maps nicely to a file path, so let's use it, like this:

URL path file
http://localhost:5000/README.md /README.md ./README.md
http://localhost:5000/public/favicon.ico /favicon.ico ./public/favicon.ico

./ ("dot slash") means "inside the current directory", which in this case is the directory the server is launched from.

Simple File Server: Code

let fs = require('fs');
let http = require('http');
const port = process.env.PORT || 5000;
http.createServer(function (request, response) {
  let contentType;
  let file;
  let data;
  let path = request.url;

  if (path === '/' || path === '') {
    file = 'index.html';
  }
  else {
    file = '.' + decodeURIComponent(request.url);
  }

  try {
    if (file) {
      console.log('Serving ' + file);
      data = fs.readFileSync(file);
      contentType = mime.lookup(file);
    }
  } catch (error) {
    console.log(error);
    data = "Error: " + error.toString();
    response.statusCode = 404;
  }

  response.setHeader('Content-Type', contentType + '; charset=utf-8');
  response.write(data);
  response.end();
}).listen(port);
console.log("Listening on port " + port);

LAB: Simple File Server

  1. Type in the above server, and launch it with node index.js
  2. In a separate terminal window, run telnet localhost 5000
  3. Type in GET /index.js and hit the Enter key twice
  4. Look at the output, especially the body and the Content-Type header. Is it what you expect? Why or why not?

Simple File Server: important points

  • the server parses the request path (e.g. /index.js) and uses it to locate a file on the server
  • if there is no request path (e.g. http://localhost:5000/) then it defaults to index.html
  • decodeUriComponent converts URLEncoded symbols
    • (e.g. converting %2F back into a / slash, or %25 into a single percent sign)
  • once it finds the file...

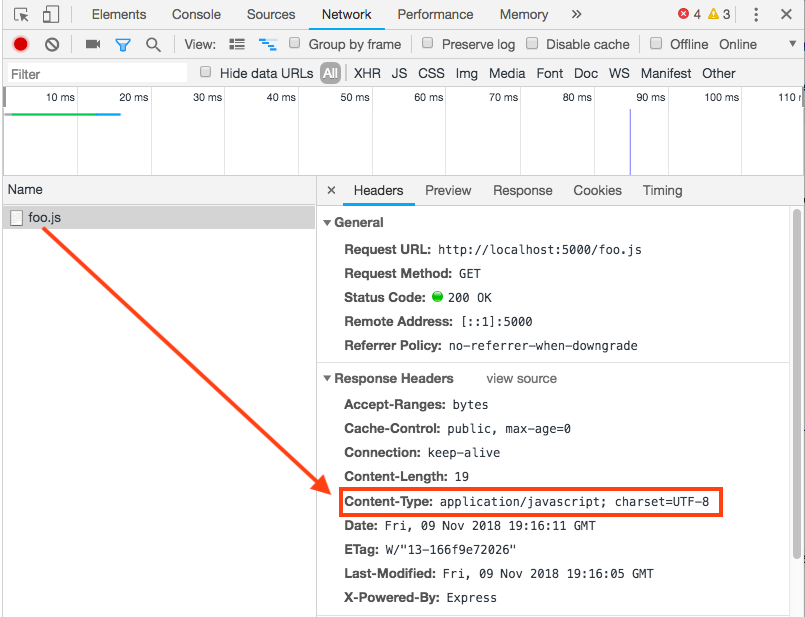

    • it uses the mime library to look up the file MIME type (e.g. application/javascript) from the file extension (e.g. .js)
    • it uses the Content-Type header to tell the client that the file is in that format

Most important point:

There is a major security hole in this server. Can you find it?

Security Hole

  • this server is terribly insecure
  • any client can access any file on the server, simply by putting in a relative path
    • e.g. GET ../../../etc/passwd - the system password file
    • e.g. GET ../yelpington/index.html - files from a different site hosted on the same computer
    • e.g. GET /index.js - server code, not client code

that's why most web servers use a public directory to store all publicly accessible files

btw, most browsers these days automatically remove ../ from URLs, to prevent this kind of attack, but we can get around that in telnet:

$ telnet localhost 5000
Trying ::1...
Connected to localhost.
Escape character is '^]'.
GET /../fancy/README.md

Patching the hole

  1. Create a relative file path from the request path
  2. Create an absolute file path from the relative path
  3. Make sure that file path is inside this site's public directory
const $path = require('path');
let file = '.' + decodeURIComponent(request.url);
file = $path.resolve(file);
let publicDir = $path.resolve('.');
if (!file.startsWith(publicDir)) {
  data = "Error: you are not permitted to access that file.";
  response.statusCode = 403; // Forbidden
  console.log("User requested file '" + request.url + "' (not permitted)");
  file = null;
}

This "public dir" algorithm is a partial solution; there are many other factors in configuring a secure web server that we can't get into now.

Simple Directory Server

New rule:

  • when the user requests a file, we serve that file
  • when the user requests a directory, we serve an HTML page that includes links to each file in that directory
    • aka an "index page" or "index.html"

Historical note:

  • This was the way the early webservers always used to work, and modern web servers can be configured to work the same way.
  • This is why index.html is named index -- it is a replacement for the automatic default index page.

Simple Directory Server

if (fs.statSync(file).isDirectory()) {
  let indexFile = file + "/index.html";
  if (fs.existsSync(indexFile)) {
    sendFile(indexFile);
  } else {

    let files = fs.readdirSync(file);
    let html = files
        .map((f) => `<li><a href="${path}/${f}">${f}</a></li>`)
        .join('\n');
    data = `<h1>${path}</h1> <ul> ${html} </ul>`;
    contentType = 'text/html';

  }
} else {
  sendFile(file);
}

  • Our logic is getting a bit more complex, so we're extracting some functions to make it more readable
  • This is our first example of dynamically generated HTML
  • We're also using backtick strings (an ES6 feature) to "interpolate" strings into each other:
    • with ticks: '$' + dollars + '.' + cents
    • with backticks: `$${dollars}.${cents}`
    • output: "$24.03" (same for both)

public dir

One final change to our file server...

Let's make it so you can't serve server-only file and directories like node_modules and README.md.

    let publicDir = $path.resolve('./public');
    if (!file.startsWith(publicDir)) {
      console.log("User requested file '" + request.url + "' (not permitted)");
      sendError(403, "Error: you are not permitted to access that file.");
    }

run node simple_dir.js and visit http://localhost:5000/images

note that these files are inside the public directory even though the request path did not include the word "public"

Prepare for extraction

Now that we have a (mostly) working file server, let's extract it into a library. Look at lib/assistant.js.

We took the functions sendFile, sendError, etc., and put them into a class named FileServer.

Now the core server is tight:

const http = require('http');
const Assistant = require('./lib/assistant');
const port = process.env.PORT || 5000;

http.createServer(function (request, response) {
  console.log('Finding ' + request.url);
  let assistant = new Assistant(request, response);
  assistant.handleFileRequest();
}).listen(port);
console.log("Listening on port " + port);
