Slides

Responsive Layout

  • "Responsive" means that the layout changes and responds based on the width of the screen
  • This allows for specific layouts for mobile phones, tablets, screen readers, and more
  • Layouts can be redered conditionally based on:
    • Screen size
    • Pixel density
    • Screen orientation
    • Height/Width Ratio i.e. 11:9

Question: Why might this be important?*

What is Responsive Development?

  • Responsive development is a technique that displays content well regardless of the device it is being viewed on
  • This concept is increasingly important, not all users are desktop browsers
  • In 2017 and 2018 more than 50% of web traffic was from mobile devices

Responsive Layout: Media Queries

  • CSS3 introduced media queries, which allow developers to apply CSS properties to devices which match rules
  • Media queries are the backbone of front-end responsive development with HTML and CSS
  • Applying CSS to specific screen widths allows for changing the layout and styles based on the size of a device

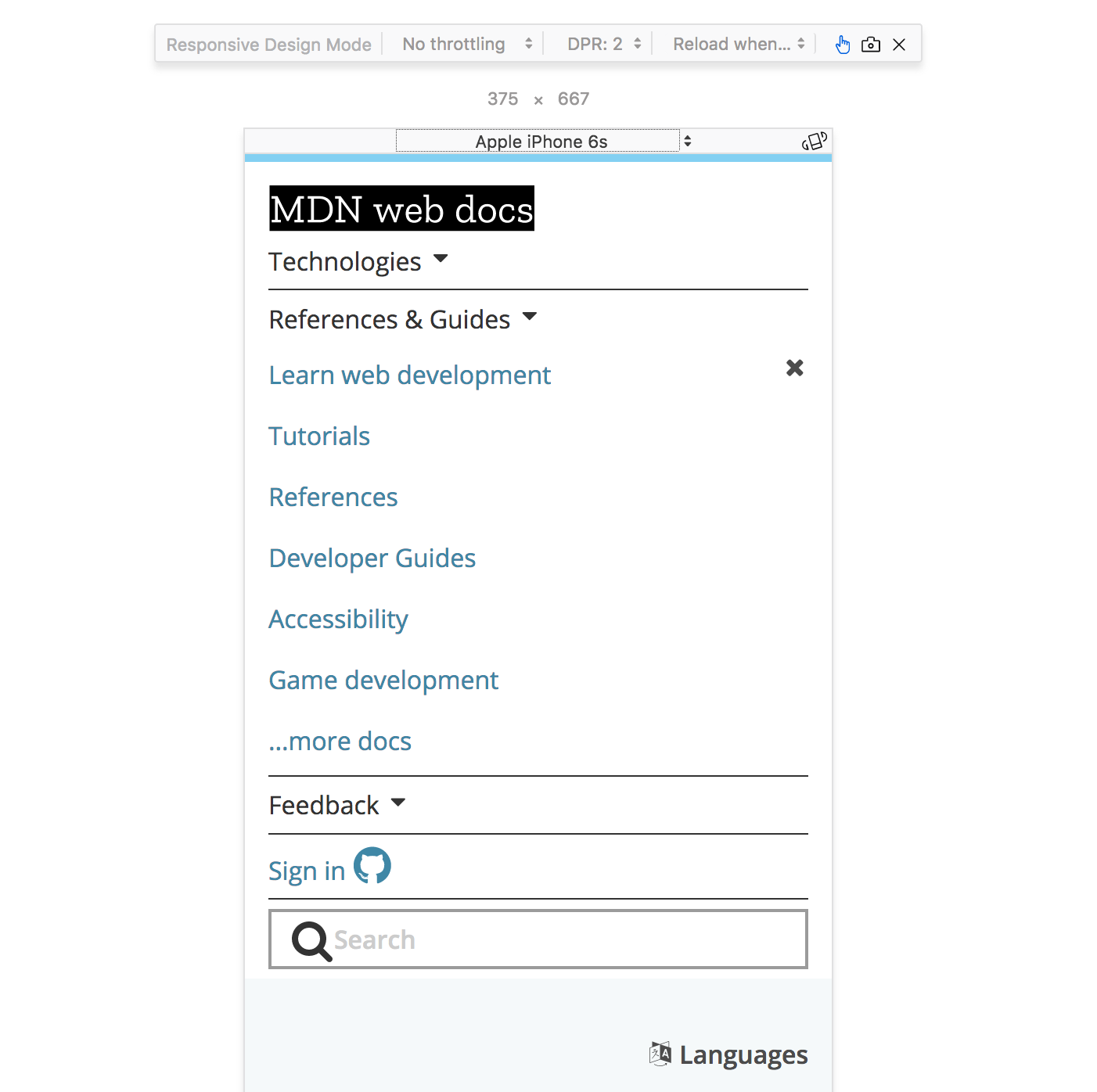

Mobile Device Simulator

Mobile Device Simulation Screenshot

Link: Firefox Responsive Design Mode

Link: Chrome Mobile Device Simulator

Using Media Queries

  • Media Queries (@media (some_condition) { }) cause different CSS rules to be applied on different screens

Example

This will make our .nav element position relative when the media type is print


// Default position layout

.nav {
  position: absolute;
}

// Print media only layout

@media print {
  .nav {
    position: relative;
  }
}

Media Features

Each feature is a characteristic of the user-agent

Query Description
width the width of the viewport
all TRUE if the device responds to media queries
resolution Pixel density of the output device
color Number of bits per color component of the device
pointer Is the primary input mechanism a pointing device
hover Does the primary input mechanism allow the user to hover

MDN: Documentation on Media Queries

Media Query Conditionals - AND

Only change the layout to position: relative; when

  • The media is screen
  • AND
  • The screen width is greater than or equal to 768 pixels

@media screen and (min-width:768px) {
  .nav {
    position: relative;
  }
}

Media Query Conditionals - OR

NOTE: OR is the , (comma) in a Media Query

Only change the layout to position: relative; when

  • The media is screen
  • OR
  • The screen width is greater than or equal to 768 pixels

@media screen, (min-width:768px) {
  .nav {
    position: relative;
  }
}

Mobile-First Development

  • Developing mobile first means to start styling out your web page for a mobile device, and then modify the layout for a desktop browser
  • The result of this is modifying your CSS as screen sizes increase, rather than modifying your CSS as screen sizes decrease
  • In other words, your media queries will be written for minimum widths, not maximum widths
  • Tip: You can also set media queries in-between two screen sizes
